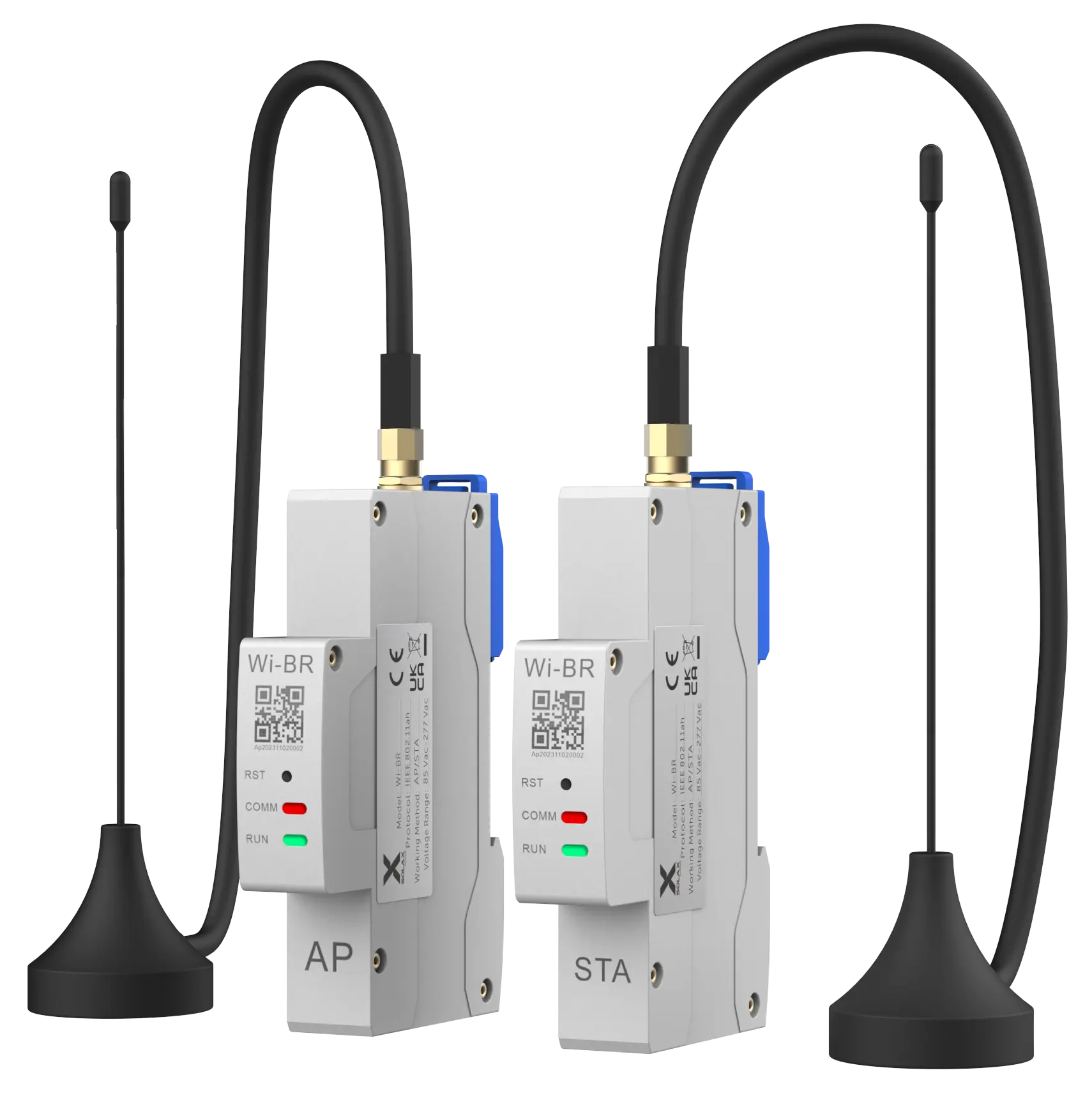

Wi-BR
Compatible with single & three-phase meters
Efficient and stable data transmission up to 200m①
① Wireless communication is affected by obstacles in complex environments, and can reach up to 200 meters horizontally in open space. When there are walls, it can support up to 4 layers of partitions (approximately 30 meters).
Din-rail installation for 85 Vac-277 Vac power supply
Penetration ability up to 4 floors (30 meters vertically)
SolaX Wireless Bridge stands out for its superior performance and versatility. It offers wide coverage with stable data transmission up to 200 meters, strong vertical penetration up to 30 meters (or 4 floors), and an intelligent design that supports din-rail installation for various power supplies.
| Parameter | Specification |
| Working Method | AP / STA |
| Protocol | IEEE 802.11ah |
| Communication Terminal | RS485 * 1 (for each model) |
| Phase Voltage | 85 ~ 277 Vac |
| Max. Power Consumption | 2 W |
| Operating Temperature | -25 ~ 55°C |
| Dimensions | 18 × 98 × 66 mm |
| Mounting Type | DIN rail |
| Ingress Protection Rating | IP 20 |
| Altitude | ≤2000 m |
