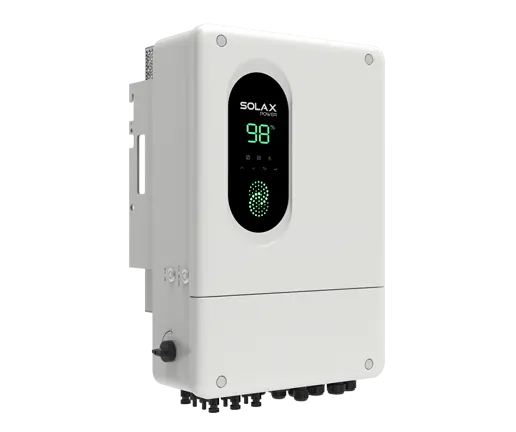

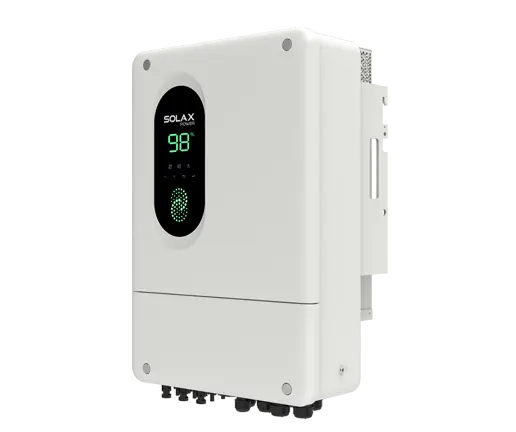

8.0kW / 10.0kW / 12.0kW
200% PV oversizing and up to 110% AC output
200% peak EPS power for 10s*
Max. 250A charging / discharging current
Low start-up voltage for longer operation
Smart loads management
Single unit UPS-level switchover time < 8ms
Built-in shadow tracking
Battery terminal temperature detection
IP65 protection degree
Type II SPD on AC&DC side
Optional AFCI protection*
Max. 10pcs parallel for on-grid and off-grid*
Microgrid and generator function for versatile operations
Max. 32A input per string, optimized for high-power solar panels.
Unleash the full potential of our advanced low voltage hybrid inverter with 200% PV oversizing, high power input, and flexible compatibility with multiple battery types. The low startup voltage extends MPPT operation times, and with built-in shadow tracking. It also supports a Micro-grid setup that transforms your existing grid-tied system. Our system has passed over 140 professional tests to ensure it meets the highest standards of safety and reliability, with AFCI optional function, 200% EPS overload for 10s and rapid shutdown RSD.
| Specifications | X1-Lite-8.0-LV |
| Max. recommended PV array power | 16 kWp |
| Max. PV input voltage | 600 V |
| Nominal PV input voltage | 360 V |
| Operating voltage range | 50 ~ 550 V |
| MPPT voltage range | 50 ~ 550 V |
| Start-up voltage | 110 V |
| No. of MPP trackers / Strings per MPP tracker | 2/(2/2) |
| Max. input current per MPPT (MPPT1/2/3) | 32 A / 32 A |
| Max. input short circuit current per MPPT (MPPT1/2/3) | 40 A / 40 A |
| Rated output power | 8000 W |
| Rated output current | 34.8 A |
| Max. output apparent power | 8800 W |
| Max. output continuous current | 40 A |
| Nominal AC voltage | 1/N/PE, 220 / 230 / 240 V |
| Max. AC input apparent power | 12650 VA |
| Max. AC input current | 55 A |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
| Specifications | X1-Lite-10.0-LV |
| Max. recommended PV array power | 20 kWp |
| Max. PV input voltage | 600 V |
| Nominal PV input voltage | 360 V |
| Operating voltage range | 50 ~ 550 V |
| MPPT voltage range | 50 ~ 550 V |
| Start-up voltage | 110 V |
| No. of MPP trackers / Strings per MPP tracker | 2/(2/2) |
| Max. input current per MPPT (MPPT1/2/3) | 32 A / 32 A |
| Max. input short circuit current per MPPT (MPPT1/2/3) | 40 A / 40 A |
| Rated output power | 10000 W |
| Rated output current | 43.5 A |
| Max. output apparent power | 11000 W |
| Max. output continuous current | 50 A |
| Nominal AC voltage | 1/N/PE, 220 / 230 / 240 V |
| Max. AC input apparent power | 14950 VA |
| Max. AC input current | 65 A |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
| Specifications | X1-Lite-12.0-LV |
| Max. recommended PV array power | 24 kWp |
| Max. PV input voltage | 600 V |
| Nominal PV input voltage | 360 V |
| Operating voltage range | 50 ~ 550 V |
| MPPT voltage range | 50 ~ 550 V |
| Start-up voltage | 110 V |
| No. of MPP trackers / Strings per MPP tracker | 3/(2/2/2) |
| Max. input current per MPPT (MPPT1/2/3) | 32 A / 32 A / 32 A |
| Max. input short circuit current per MPPT (MPPT1/2/3) | 40 A / 40 A / 40 A |
| Rated output power | 12000 W |
| Rated output current | 52.2 A |
| Max. output apparent power | 13200 W |
| Max. output continuous current | 60 A |
| Nominal AC voltage | 1/N/PE, 220 / 230 / 240 V |
| Max. AC input apparent power | 18400 VA |
| Max. AC input current | 80 A |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
