Single Phase Inverter

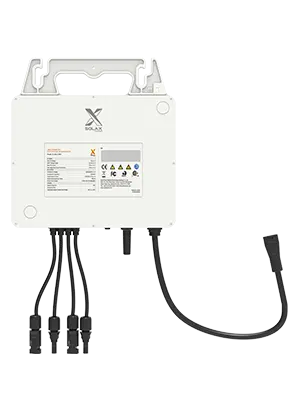

X1 MICRO 2/4 IN 1
X1 MICRO 2/4 IN 1

2 in 1
4 in 1

750W / 800W / 900W / 1000W / 1200W

1300W/ 1500W / 1600W / 1800W / 2000W / 2200W

Flexible Adaptability


  • Easy and flexible expansion of system capacity

  • Support AC coupling solution

  • Support 1-phase microinverter integration into 3-phase power grids*


High Efficiency


  • Max. 1200VA output power

  • Max. 20A DC input current

  • Two MPPT channels, small size, light weight

Intelligent Design


  • Reactive power control

  • Built-in industrial grade Wi-Fi module

  • Easy to install and maintain

Assured Safety


  • Built-in Rapid Shutdown compliant

  • Safety protection relay integrated

  • IP67 protection degree

Why X1-Microinverter 2 in 1

The SolaX X1-Micro series is renowned for its exceptional power output, positioning itself as one of the top-rated models among 2-in-1 microinverters, boasting an impressive capacity of up to 1200 VA. Specifically designed to cater to the latest and previous generation of high-power modules, these microinverters feature two independent MPPTs and robust support for input current and output power. Seamlessly incorporating Wi-Fi wireless technology, the X1-Micro series ensures reliable and consistent communication, offering users a smooth monitoring and control experience. Delivering a cost-effective solution, these microinverters are highly suitable for both residential and commercial solar applications. Furthermore, they are fully compatible with the SolaX Hybrid system and seamlessly integrate with various AC coupled systems available in the market, thus enhancing their versatility and adaptability.


750W
800W
900W
1000W
1200W
ParameterX1-Micro 750
Commonly used module power per input240 ~ 470+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage22 V
Max. PV input current2 x 15 A
Max. input short circuit current2 x 20 A
No. of MPP trackers2
Strings per MPP tracker1
Rated AC output power750 VA
Maximum continuous output power750 VA
Rated grid voltage/range1/N/PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch8 @ 220 V, 8 @ 230 V, 8 @ 240 V
Maximum units per 12AWG branch6 @ 220 V, 6 @ 230 V, 6 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.90%
Night power consumption< 40 mW



ParameterX1-Micro 800
Commonly used module power per input320 ~ 540+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage22 V
Max. PV input current2 x 15 A
Max. input short circuit current2 x 20 A
No. of MPP trackers2
Strings per MPP tracker1
Rated AC output power800 VA
Maximum continuous output power800 VA
Rated grid voltage/range1/N/PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch7 @ 220 V, 7 @ 230 V, 7 @ 240 V
Maximum units per 12AWG branch5 @ 220 V, 5 @ 230 V, 5 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.90%
Night power consumption< 40 mW



ParameterX1-Micro 900
Commonly used module power per input360 ~ 600+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage22 V
Max. PV input current2 x 16 A
Max. input short circuit current2 x 25 A
No. of MPP trackers2
Strings per MPP tracker1
Rated AC output power900 VA
Maximum continuous output power900 VA
Maximum continuous output current3.75 A @ 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch6 @ 220 V, 6 @ 230 V, 6 @ 240 V
Maximum units per 12AWG branch5 @ 220 V, 5 @ 230 V, 5 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.90%
Night power consumption< 40 mW



ParameterX1-Micro 1000
Commonly used module power per input360 ~ 600+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage22 V
Max. PV input current2 x 20 A
Max. input short circuit current2 x 25 A
No. of MPP trackers2
Strings per MPP tracker1
Rated AC output power1000 VA
Maximum continuous output power1000 VA
Maximum continuous output current4.17 A @ 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch6 @ 220 V, 6 @ 230 V, 6 @ 240 V
Maximum units per 12AWG branch4 @ 220 V, 4 @ 230 V, 4 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.90%
Night power consumption< 40 mW



ParameterX1-Micro 1200
Commonly used module power per input400 ~ 670+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage22 V
Max. PV input current2 x 20 A
Max. input short circuit current2 x 25 A
No. of MPP trackers2
Strings per MPP tracker1
Rated AC output power1200 VA
Maximum continuous output power1200 VA
Maximum continuous output current5.00 A @ 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch5 @ 220 V, 5 @ 230 V, 5 @ 240 V
Maximum units per 12AWG branch4 @ 220 V, 4 @ 230 V, 4 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.90%
Night power consumption< 40 mW



High Efficiency


  • Max. 2200VA output power

  • Max. 20A DC input current

  • Four MPPT channels, small size, light weight




Intelligent Design


  • Reactive power control

  • Built-in industrial-grade Wi-Fi module

  • Easy to install and maintain





Assured Safety


  • Built-in Rapid Shutdown compliant

  • Safety protection relay integrated

  • IP67 protection degree




Flexible Adaptability


  • Easy and flexible expansion of system capacity

  • Support AC coupling solution

  • Support 1-phase microinverter integration into 3-phase power grids*



Why Micro 4 In 1

The SolaX X1-Micro series of microinverters stands out as one of the most powerful options in the 4-in-1 microinverter category, boasting an impressive output power of up to 2200 VA. These cutting-edge products are specifically designed to handle the latest and previous generation of high power modules with 4 independent MPPTs, allowing for substantial input current and output power capabilities. The integration of a reliable WiFi wireless solution ensures consistent and dependable communication functionality. Offering a cost-effective solution for both residential and commercial solar applications, these microinverters are fully compatible with SolaX Hybrid systems and can also be seamlessly integrated into AC coupled systems on the market.



X1-Micro 1300
X1-Micro 1500
X1-Micro 1600
X1-Micro 1800
X1-Micro 2000
X1-Micro 2200
ParametersX1-Micro 1300
Max. PV input power [W]300 ~ 505+ W
Max. PV input voltage [V]60
MPPT voltage range [V]22-60
Start-up voltage [V]20
Max. PV input current [A]4 × 12
Max. input short circuit current Isc [A]4 × 20
No. of MPP trackers4
Strings per MPP tracker1
Rated AC output power [VA]1300
Maximum continuous output power [VA]1300
Maximum continuous output current [A]5.91@220V,
5.66@230V,
5.42@240V
Rated grid voltage/range [V]1 / N / PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Maximum units per 10AWG branch4@220V, 4@230V, 5@240V
Maximum units per 12AWG branch3@220V, 3@230V, 4@240V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THDi (Rated power) [%]<3%


ParameterX1-Micro 1500
Commonly used module power per input320 ~ 540+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage20 V
Max. PV input current4 x 14 A
Max. input short circuit current4 x 20 A
No. of MPP trackers4
Strings per MPP tracker1
Rated AC output power1500 VA
Maximum continuous output power1500 VA
Maximum continuous output current6.25 A @ 240 V
Rated grid voltage/range1/N/PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch4 @ 220 V, 4 @ 230 V, 4 @ 240 V
Maximum units per 12AWG branch3 @ 220 V, 3 @ 230 V, 3 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.50%
Night power consumption< 40 mW



ParameterX1-Micro 1600
Commonly used module power per input360 ~ 600+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage20 V
Max. PV input current4 x 15 A
Max. input short circuit current4 x 25 A
No. of MPP trackers4
Strings per MPP tracker1
Rated AC output power1600 VA
Maximum continuous output power1600 VA
Maximum continuous output current6.67 A @ 240 V
Rated grid voltage/range1/N/PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch4 @ 220 V, 4 @ 230 V, 4 @ 240 V
Maximum units per 12AWG branch3 @ 220 V, 3 @ 230 V, 3 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.50%
Night power consumption< 40 mW



ParameterX1-Micro 1800
Commonly used module power per input400 ~ 600+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage20 V
Max. PV input current4 x 16 A
Max. input short circuit current4 x 25 A
No. of MPP trackers4
Strings per MPP tracker1
Rated AC output power1800 VA
Maximum continuous output power1800 VA
Maximum continuous output current7.50 A @ 240 V
Rated grid voltage/range1/N/PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch3 @ 220 V, 3 @ 230 V, 3 @ 240 V
Maximum units per 12AWG branch2 @ 220 V, 2 @ 230 V, 2 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.50%
Night power consumption< 40 mW



ParameterX1-Micro 2000
Commonly used module power per input400 ~ 670+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage20 V
Max. PV input current4 x 18 A
Max. input short circuit current4 x 25 A
No. of MPP trackers4
Strings per MPP tracker1
Rated AC output power2000 VA
Maximum continuous output power2000 VA
Maximum continuous output current8.34 A @ 240 V
Rated grid voltage/range1/N/PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch3 @ 220 V, 3 @ 230 V, 3 @ 240 V
Maximum units per 12AWG branch2 @ 220 V, 2 @ 230 V, 2 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.50%
Night power consumption< 40 mW




ParameterX1-Micro 2200
Commonly used module power per input400 ~ 670+ W
Max. PV input voltage60 V
MPPT voltage range22 ~ 60 V
Start-up voltage20 V
Max. PV input current4 x 19.5 A
Max. input short circuit current4 x 25 A
No. of MPP trackers4
Strings per MPP tracker1
Rated AC output power2200 VA
Maximum continuous output power2200 VA
Maximum continuous output current9.17 A @ 240 V
Rated grid voltage/range1/N/PE, 220 / 230 / 240 V
Nominal AC voltage range180 ~ 264 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency / range50 ± 5 Hz / 60 ± 5 Hz
Maximum units per 10AWG branch3 @ 220 V, 3 @ 230 V, 3 @ 240 V
Maximum units per 12AWG branch2 @ 220 V, 2 @ 230 V, 2 @ 240 V
Power Factor range~ 1 (0.8 lagging to 0.8 leading)
THD (Rated power)< 3%
Max. efficiency96.50%
Nominal MPPT efficiency99.50%
Night power consumption< 40 mW




Related Products
Energy Meter Energy Meter
Energy Meter
Smart Monitoring
Documents
Datasheet
Language
English
Format
PDF
Size
790KB
Last updated
25/11/2024
Language
English
Format
PDF
Size
691KB
Last updated
25/11/2024
User Manual
Language
Portugues
Format
PDF
Size
11.3M
Last updated
31/07/2024
Language
Portugues
Format
PDF
Size
12.3M
Last updated
31/07/2024
Language
Português
Format
PDF
Size
10.8MB
Last updated
10/12/2024
Language
Português
Format
PDF
Size
11.8MB
Last updated
10/12/2024
Language
English
Format
PDF
Size
12.3M
Last updated
10/12/2024
Language
English
Format
PDF
Size
12.3M
Last updated
10/12/2024
Quick Installation Guide
Language
Global
Format
PDF
Size
10.4M
Last updated
04/06/2024
Language
Global
Format
PDF
Size
10.4M
Last updated
04/06/2024
Language
Português
Format
PDF
Size
10.5M
Last updated
10/12/2024
Language
Português
Format
PDF
Size
9.48M
Last updated
10/12/2024
Language
English
Format
PDF
Size
10.2M
Last updated
10/12/2024
Language
English
Format
PDF
Size
10.2M
Last updated
10/12/2024
Feedback
Info
Role
Installer
Distributor
End User
Others
Further information can be found in the privacy policy. I understand that I can withdraw my consent at any time.
I agree with SolaX data protection directive
SolaX Power Network Technology (Zhejiang) Co.,Ltd.
We use cookies to optimise and personalise your experience, but you can choose to opt out of non-essential cookies.
To find out more, read our Privacy Policy and Terms of Use
Reject All
Accept All
Leave Your Message
