49.9K | 50K | 60K | 61K
Safe
IP66 protection level
AC&DC SPD type II, always guarding the inverter
AFCI optional
Smart IV Curve scan for early panel diagnosis
Robust
Robust back-up ability, switch over time ＜10ms, up to 150% EPS output for 10s
Support off-grid operation
Economic
Maximum 200% PV input
Maximum 40A input current per MPpT, support high power solar panel
Intelligent
AI ready, forecasting solar generation and load consumption, smart energy management strategy*
VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )
Support smart scene function, intelligent loads management(e.g., Heat pump, EV charger)*
Micro-grid ready, supporting a variety of scenarios, both on-grid and off-grid, balancing power between PCS and Hybrid in real time
Support 7x24h scheduling mode
Support Wireless meter solution
Dual independent battery ports are ready to expand more capacity

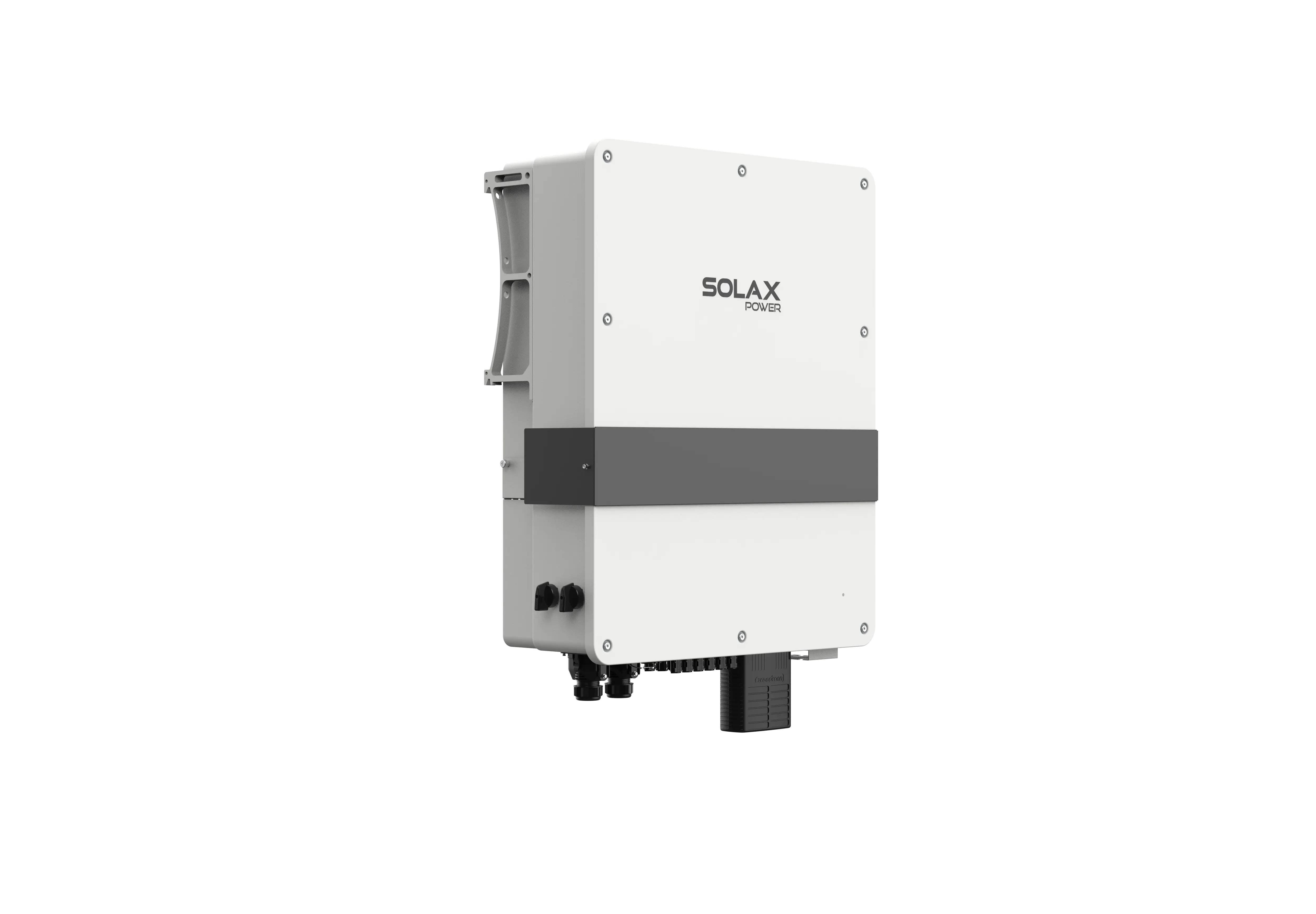

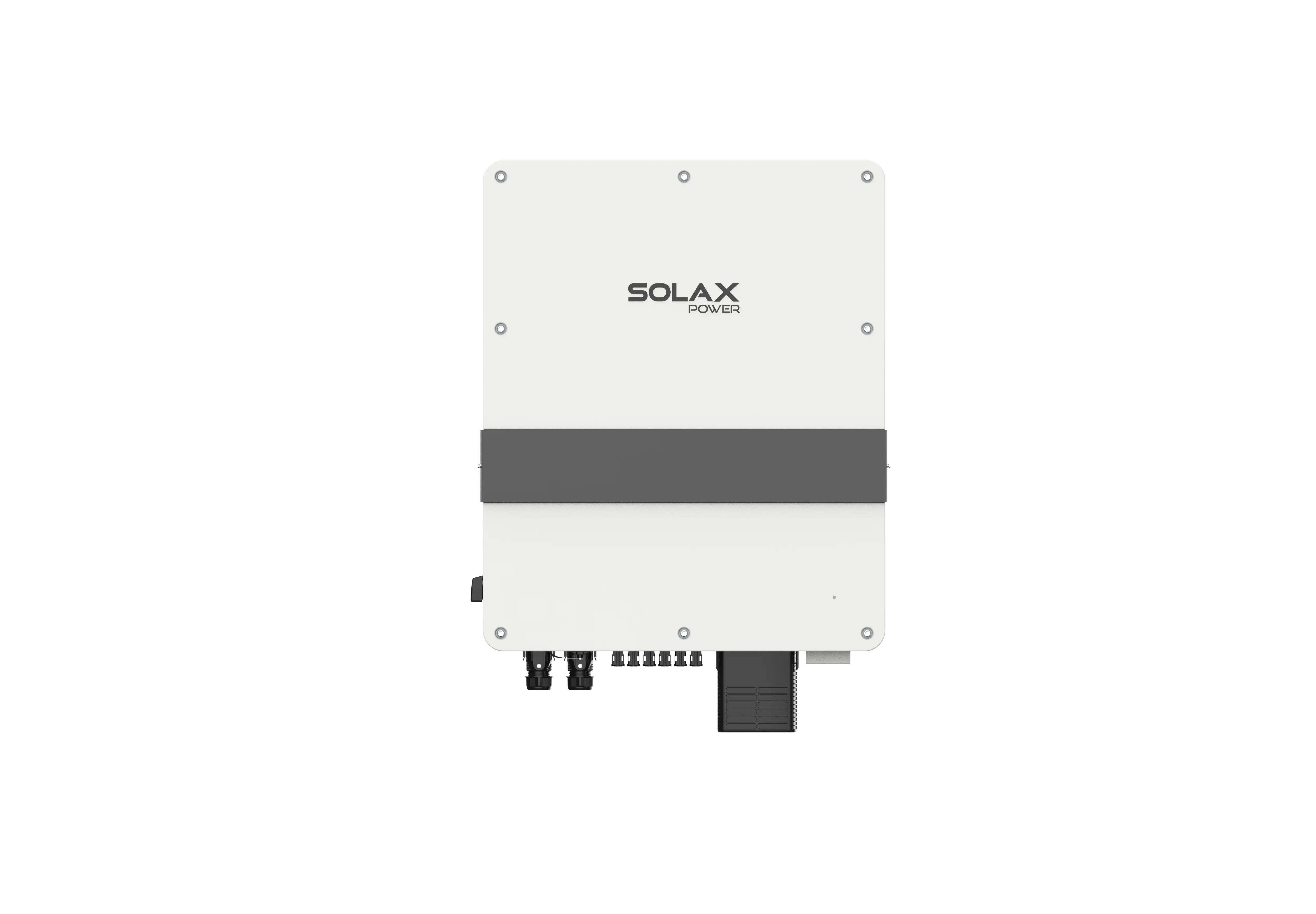

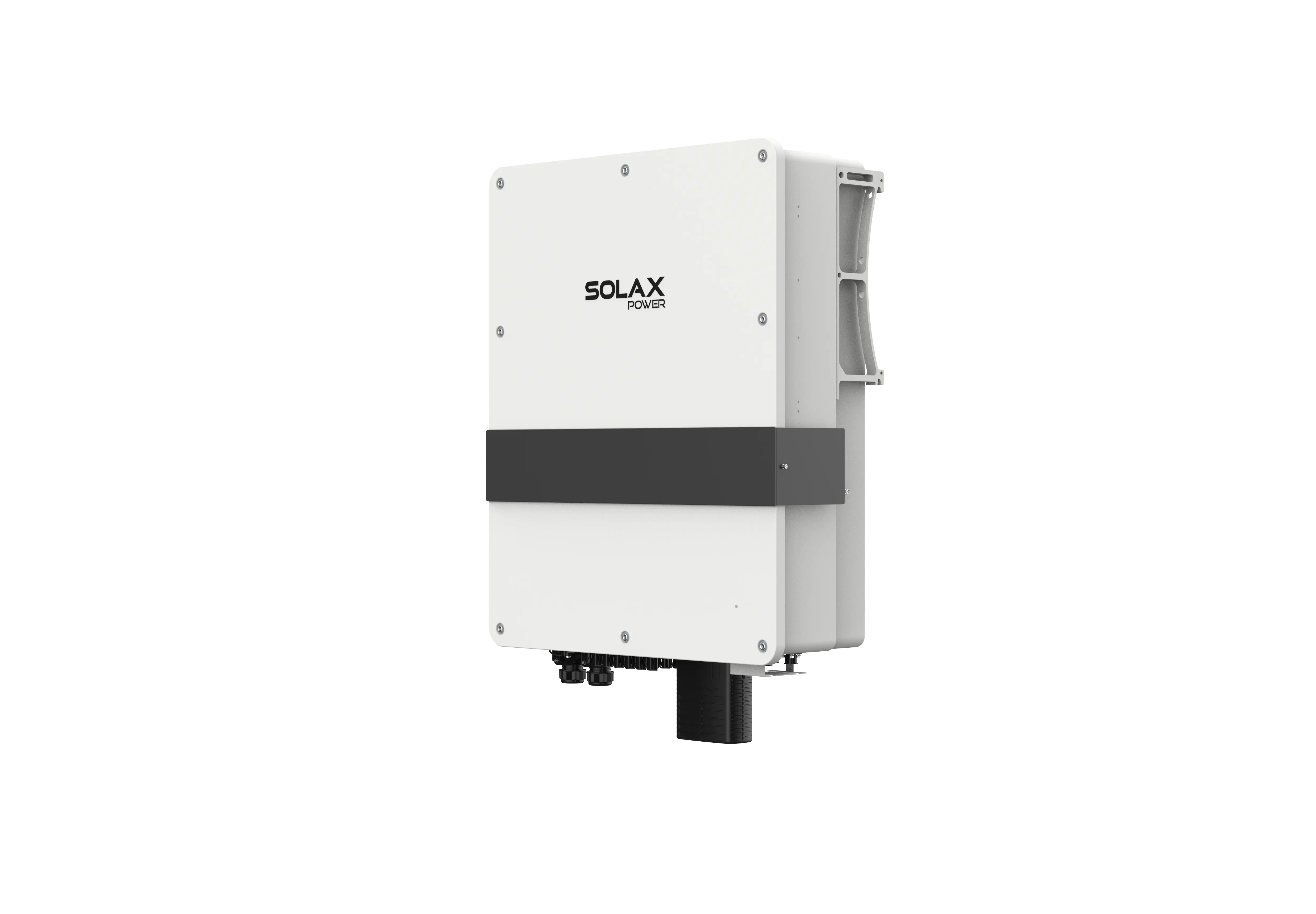

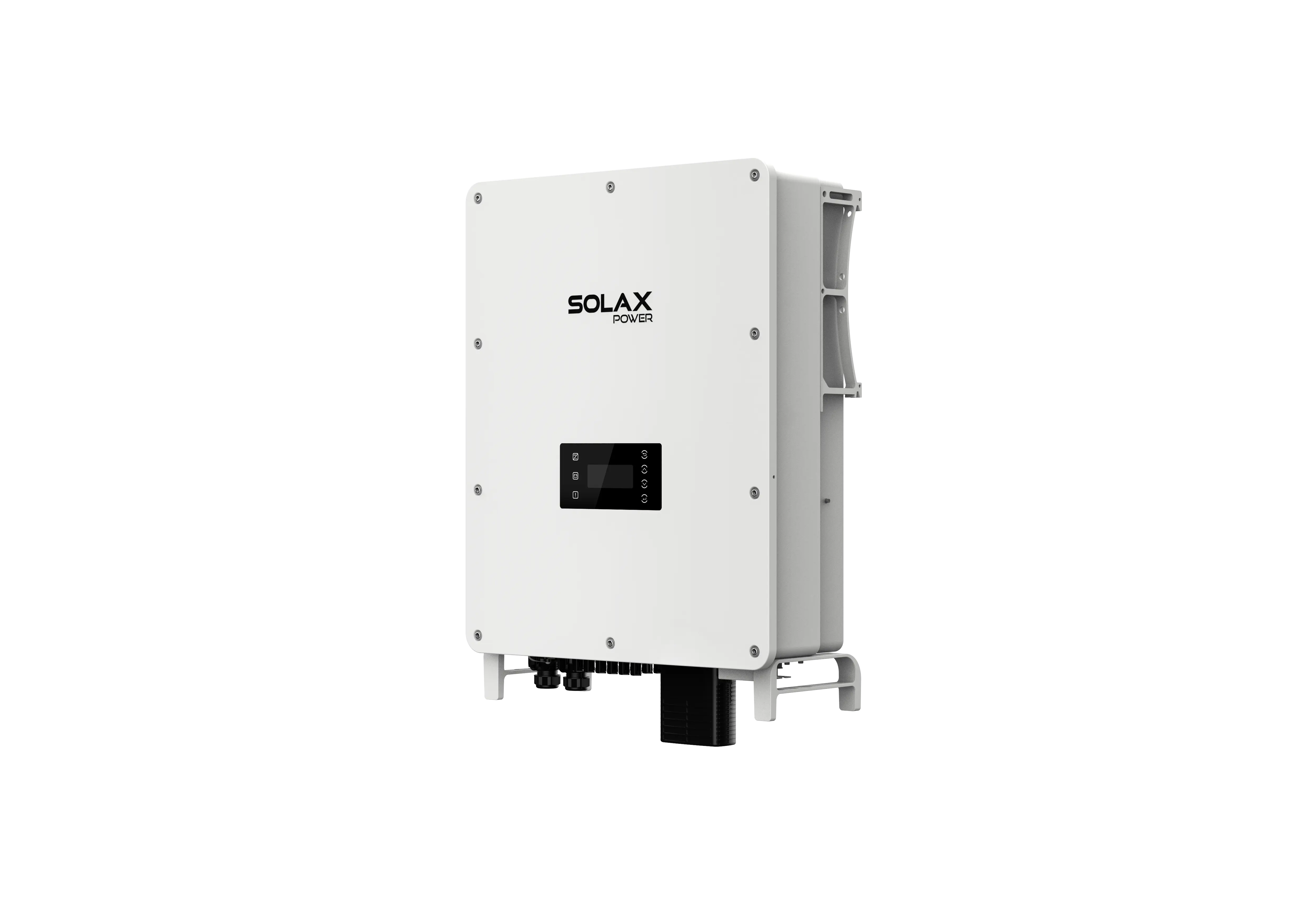

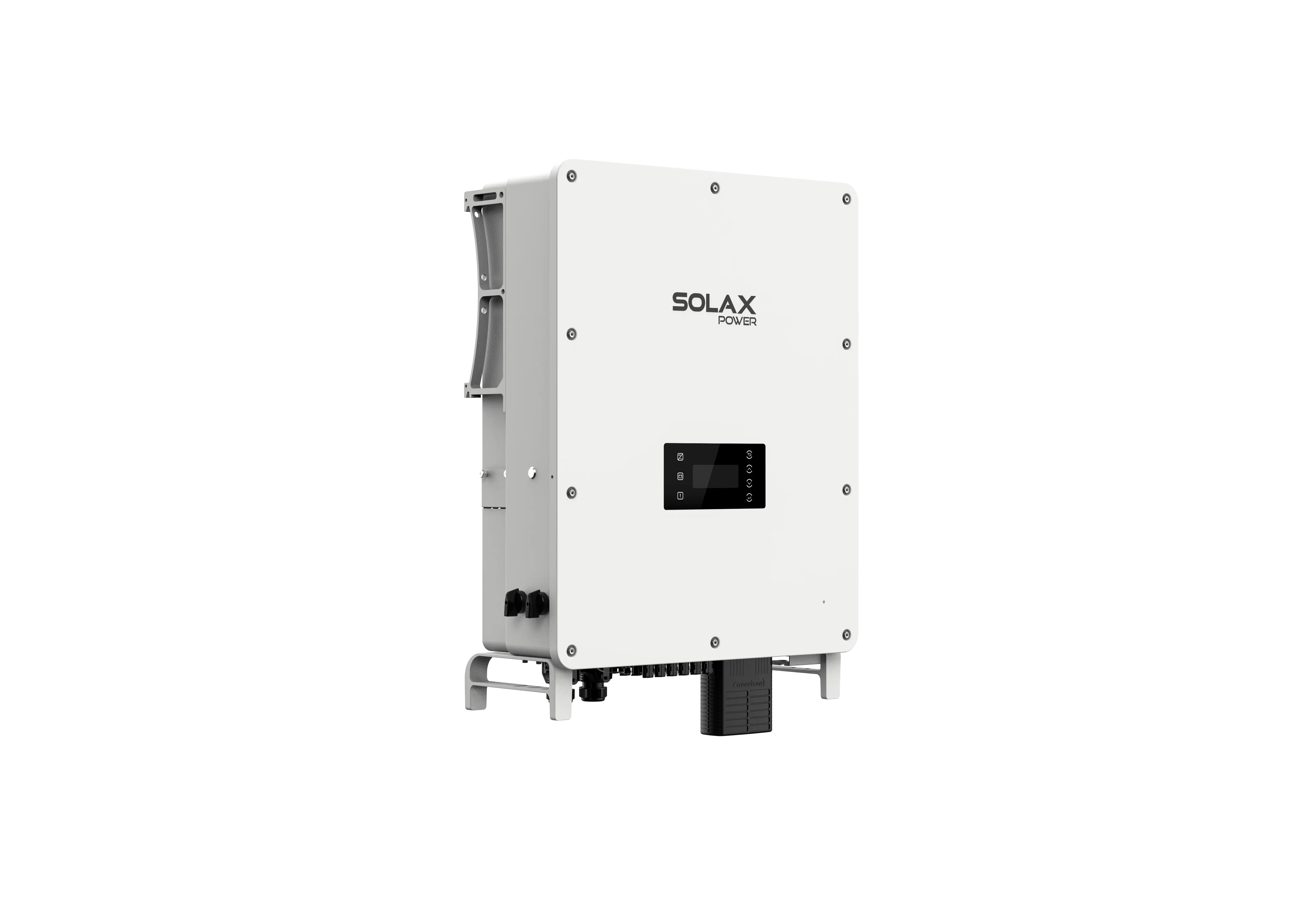

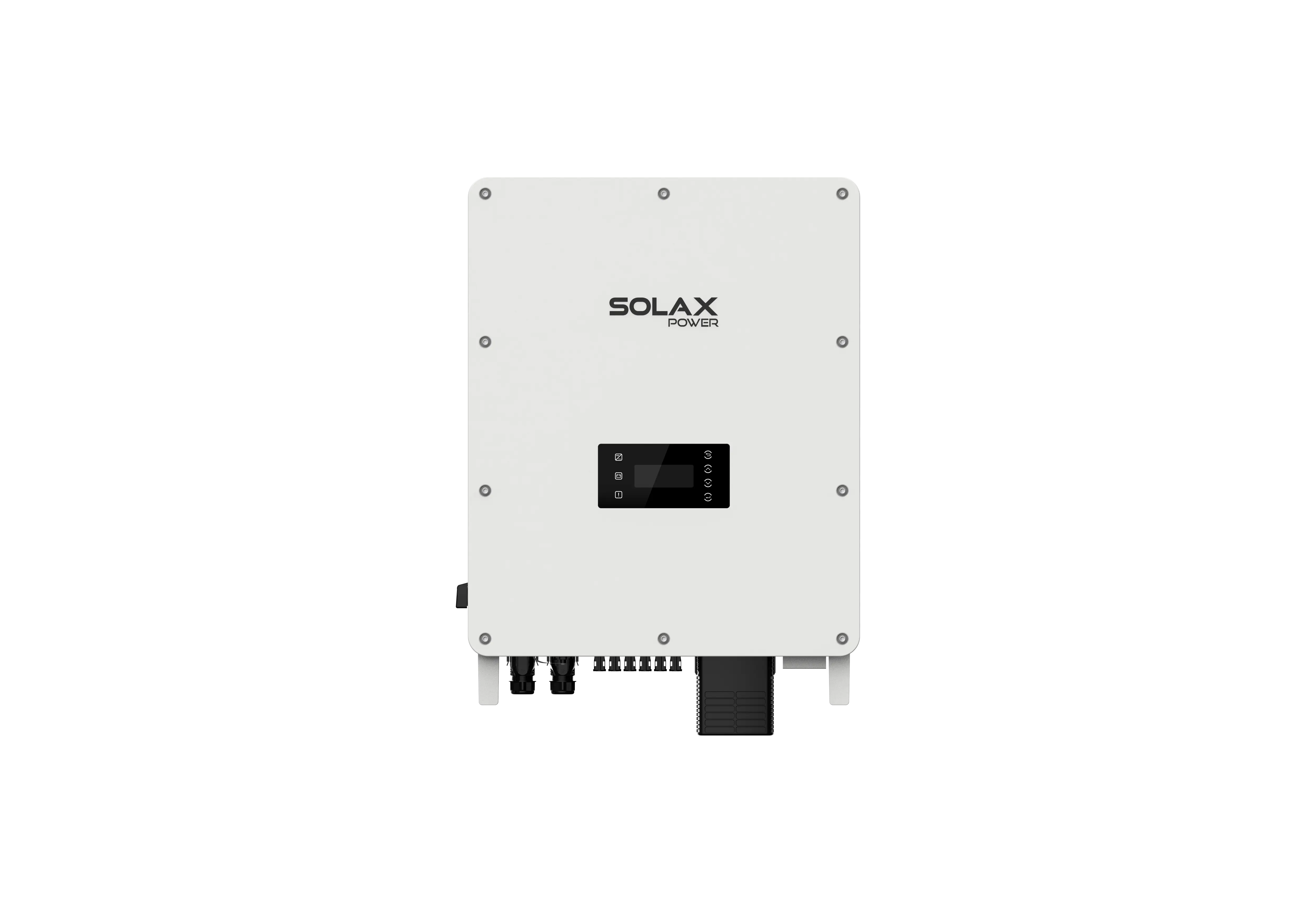

The SolaX X3 Aelio is a cutting-edge hybrid solar inverter that offers 24/7 smart energy management. Utilizing advanced AI, it forecasts solar generation and load consumption, making it an ideal component for any hybrid solar system. With VPP readiness and intelligent scene functions, it ensures optimal energy use. This hybrid storage inverter delivers high efficiency and reliability, featuring a switch-over time of less than 10ms and up to 150% EPS output for 10 seconds, supporting off-grid operations seamlessly.
Additionally, the SolaX X3 Aelio is highly cost-effective, supporting up to 200% PV input and 40A input current per MPPT. This makes it perfect for high-power solar panels, ensuring maximum energy savings and efficiency. As a leading energy storage inverter manufacturer, SolaX has designed the X3 Aelio to meet the highest standards of performance and reliability, making it an excellent choice for those looking to optimize their solar energy systems.
| X3-AELIO-49.9K Hybrid Solar Inverter | |
| PV INPUT | |
| Max. recommended PV array power | 100 kWp |
| Max. PV input voltage① | 1000 V |
| Nominal PV input voltage | 650 V |
| MPPT voltage range② | 160 ~ 950 V |
| Start-up voltage | 200 V |
| No. of MPP trackers / Strings per MPP tracker | 5 / 2 |
| Max. input current per MPPT | 40 A |
| Max. input short circuit current per MPPT | 50 A |
| AC INPUT & OUTPUT (ON-GRID) | |
| Rated output power | 49.9 kW |
| Rated output current | 72.3 A（72.0 A） |
| Max. output apparent power | 49.9 kVA |
| Max. output continuous current | 83.2 A（76.0 A） |
| Nominal AC voltage | 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range③ | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | < 3% |
| BATTERY | |
| Battery type | Lithium |
| Battery voltage range | 180 ~ 820 V |
| Max. charge / discharge current | 160 A (80 A × 2) |
| EPS (OFF-GRID) OUTPUT | |
| Rated EPS output voltage, frequency | 230 / 400 V, 220 / 380 V, 50 Hz / 60 Hz |
| Rated EPS output power | 49.9 kVA |
| Peak EPS output power | 55 kVA, continuous 75 kVA, 10s |
| Switchover time | < 10 ms |
| EFFICIENCY | |
| Max. efficiency | 98.0% |
| European efficiency | 97.2% |
| ENVIRONMENT LIMIT | |
| Ingress protection | IP66 |
| Operating ambient temperature range④ | -35 ~ 60°C |
| Max. operating altitude | 3000 m |
| Relative humidity | 0 ~ 100% RH (condensing) |
| Overvoltage Category | Mains: Ⅲ, Battery: Ⅱ, PV: Ⅱ |
| GENERAL | |
| Dimensions (W × H × D) | 820 × 670 × 257 mm |
| Net weight | < 100 kg |
| X3-AELIO-49.9K-P Hybrid Solar Inverter | |
| PV INPUT | |
| Max. recommended PV array power | 120 kWp |
| Max. PV input voltage① | 1000 V |
| Nominal PV input voltage | 650 V |
| MPPT voltage range② | 160 ~ 950 V |
| Start-up voltage | 200 V |
| No. of MPP trackers / Strings per MPP tracker | 6 / 2 |
| Max. input current per MPPT | 40 A |
| Max. input short circuit current per MPPT | 50 A |
| AC INPUT & OUTPUT (ON-GRID) | |
| Rated output power | 49.9 kW |
| Rated output current | 72.0 A |
| Max. output apparent power | 49.9 kVA |
| Max. output continuous current | 76.0 A |
| Nominal AC voltage | 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range③ | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | < 3% |
| BATTERY | |
| Battery type | Lithium |
| Battery voltage range | 180 ~ 820 V |
| Max. charge / discharge current | 160 A (80 A × 2) |
| EPS (OFF-GRID) OUTPUT | |
| Rated EPS output voltage, frequency | 230 / 400 V, 220 / 380 V, 50 Hz / 60 Hz |
| Rated EPS output power | 49.9 kVA |
| Peak EPS output power | 55 kVA, continuous 75 kVA, 10s |
| Switchover time | < 10 ms |
| EFFICIENCY | |
| Max. efficiency | 98.0% |
| European efficiency | 97.2% |
| ENVIRONMENT LIMIT | |
| Ingress protection | IP66 |
| Operating ambient temperature range④ | -35 ~ 60°C |
| Max. operating altitude | 3000 m |
| Relative humidity | 0 ~ 100% RH (condensing) |
| Overvoltage Category | Mains: Ⅲ, Battery: Ⅱ, PV: Ⅱ |
| GENERAL | |
| Dimensions (W × H × D) | 820 × 670 × 257 mm |
| Net weight | < 105 kg |
| X3-AELIO-50K Hybrid Solar Inverter | |
| PV INPUT | |
| Max. recommended PV array power | 100 kWp |
| Max. PV input voltage① | 1000 V |
| Nominal PV input voltage | 650 V |
| MPPT voltage range② | 160 ~ 950 V |
| Start-up voltage | 200 V |
| No. of MPP trackers / Strings per MPP tracker | 5 / 2 |
| Max. input current per MPPT | 40 A |
| Max. input short circuit current per MPPT | 50 A |
| AC INPUT & OUTPUT (ON-GRID) | |
| Rated output power | 50 kW |
| Rated output current | 72.5 A（72.2A） |
| Max. output apparent power | 55 kVA |
| Max. output continuous current | 83.3 A（83.6A） |
| Nominal AC voltage | 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range③ | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | < 3% |
| BATTERY | |
| Battery type | Lithium |
| Battery voltage range | 180 ~ 820 V |
| Max. charge / discharge current | 160 A (80 A × 2) |
| EPS (OFF-GRID) OUTPUT | |
| Rated EPS output voltage, frequency | 230 / 400 V, 220 / 380 V, 50 Hz / 60 Hz |
| Rated EPS output power | 50.0 kVA |
| Peak EPS output power | 55 kVA, continuous 75 kVA, 10s |
| Switchover time | < 10 ms |
| EFFICIENCY | |
| Max. efficiency | 98.0% |
| European efficiency | 97.2% |
| ENVIRONMENT LIMIT | |
| Ingress protection | IP66 |
| Operating ambient temperature range④ | -35 ~ 60°C |
| Max. operating altitude | 3000 m |
| Relative humidity | 0 ~ 100% RH (condensing) |
| Overvoltage Category | Mains: Ⅲ, Battery: Ⅱ, PV: Ⅱ |
| GENERAL | |
| Dimensions (W × H × D) | 820 × 670 × 257 mm |
| Net weight | < 100 kg |
| X3-AELIO-60K Hybrid Solar Inverter | |
| PV INPUT | |
| Max. recommended PV array power | 120 kWp |
| Max. PV input voltage① | 1000 V |
| Nominal PV input voltage | 650 V |
| MPPT voltage range② | 160 ~ 950 V |
| Start-up voltage | 200 V |
| No. of MPP trackers / Strings per MPP tracker | 6 / 2 |
| Max. input current per MPPT | 40 A |
| Max. input short circuit current per MPPT | 50 A |
| AC INPUT & OUTPUT (ON-GRID) | |
| Rated output power | 60 kW |
| Rated output current | 87.0 A（86.6A） |
| Max. output apparent power | 66 kVA |
| Max. output continuous current | 100.0 A（100.3A） |
| Nominal AC voltage | 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range③ | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | < 3% |
| BATTERY | |
| Battery type | Lithium |
| Battery voltage range | 180 ~ 820 V |
| Max. charge / discharge current | 160 A (80 A × 2) |
| EPS (OFF-GRID) OUTPUT | |
| Rated EPS output voltage, frequency | 230 / 400 V, 220 / 380 V, 50 Hz / 60 Hz |
| Rated EPS output power | 60.0 kVA |
| Peak EPS output power | 66 kVA, continuous 90 kVA, 10s |
| Switchover time | < 10 ms |
| EFFICIENCY | |
| Max. efficiency | 98.0% |
| European efficiency | 97.2% |
| ENVIRONMENT LIMIT | |
| Ingress protection | IP66 |
| Operating ambient temperature range④ | -35 ~ 60°C |
| Max. operating altitude | 3000 m |
| Relative humidity | 0 ~ 100% RH (condensing) |
| Overvoltage Category | Mains: Ⅲ, Battery: Ⅱ, PV: Ⅱ |
| GENERAL | |
| Dimensions (W × H × D) | 820 × 670 × 257 mm |
| Net weight | < 105 kg |
| X3-AELIO-61K Hybrid Solar Inverter | |
| PV INPUT | |
| Max. recommended PV array power | 120 kWp |
| Max. PV input voltage① | 1000 V |
| Nominal PV input voltage | 650 V |
| MPPT voltage range② | 160 ~ 950 V |
| Start-up voltage | 200 V |
| No. of MPP trackers / Strings per MPP tracker | 6 / 2 |
| Max. input current per MPPT | 40 A |
| Max. input short circuit current per MPPT | 50 A |
| AC INPUT & OUTPUT (ON-GRID) | |
| Rated output power | 61 kW |
| Rated output current | 88.4 A（88A） |
| Max. output apparent power | 66 kVA |
| Max. output continuous current | 100.0 A（100.3A） |
| Nominal AC voltage | 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V |
| Nominal AC frequency | 50 Hz / 60 Hz |
| AC frequency range③ | 50 ± 5 Hz / 60 ± 5 Hz |
| Adjustable Power Factor range | ~ 1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | < 3% |
| BATTERY | |
| Battery type | Lithium |
| Battery voltage range | 180 ~ 820 V |
| Max. charge / discharge current | 160 A (80 A × 2) |
| EPS (OFF-GRID) OUTPUT | |
| Rated EPS output voltage, frequency | 230 / 400 V, 220 / 380 V, 50 Hz / 60 Hz |
| Rated EPS output power | 61.0 kVA |
| Peak EPS output power | 66 kVA, continuous 90 kVA, 10s |
| Switchover time | < 10 ms |
| EFFICIENCY | |
| Max. efficiency | 98.0% |
| European efficiency | 97.2% |
| ENVIRONMENT LIMIT | |
| Ingress protection | IP66 |
| Operating ambient temperature range④ | -35 ~ 60°C |
| Max. operating altitude | 3000 m |
| Relative humidity | 0 ~ 100% RH (condensing) |
| Overvoltage Category | Mains: Ⅲ, Battery: Ⅱ, PV: Ⅱ |
| GENERAL | |
| Dimensions (W × H × D) | 820 × 670 × 257 mm |
| Net weight | < 105 kg |
