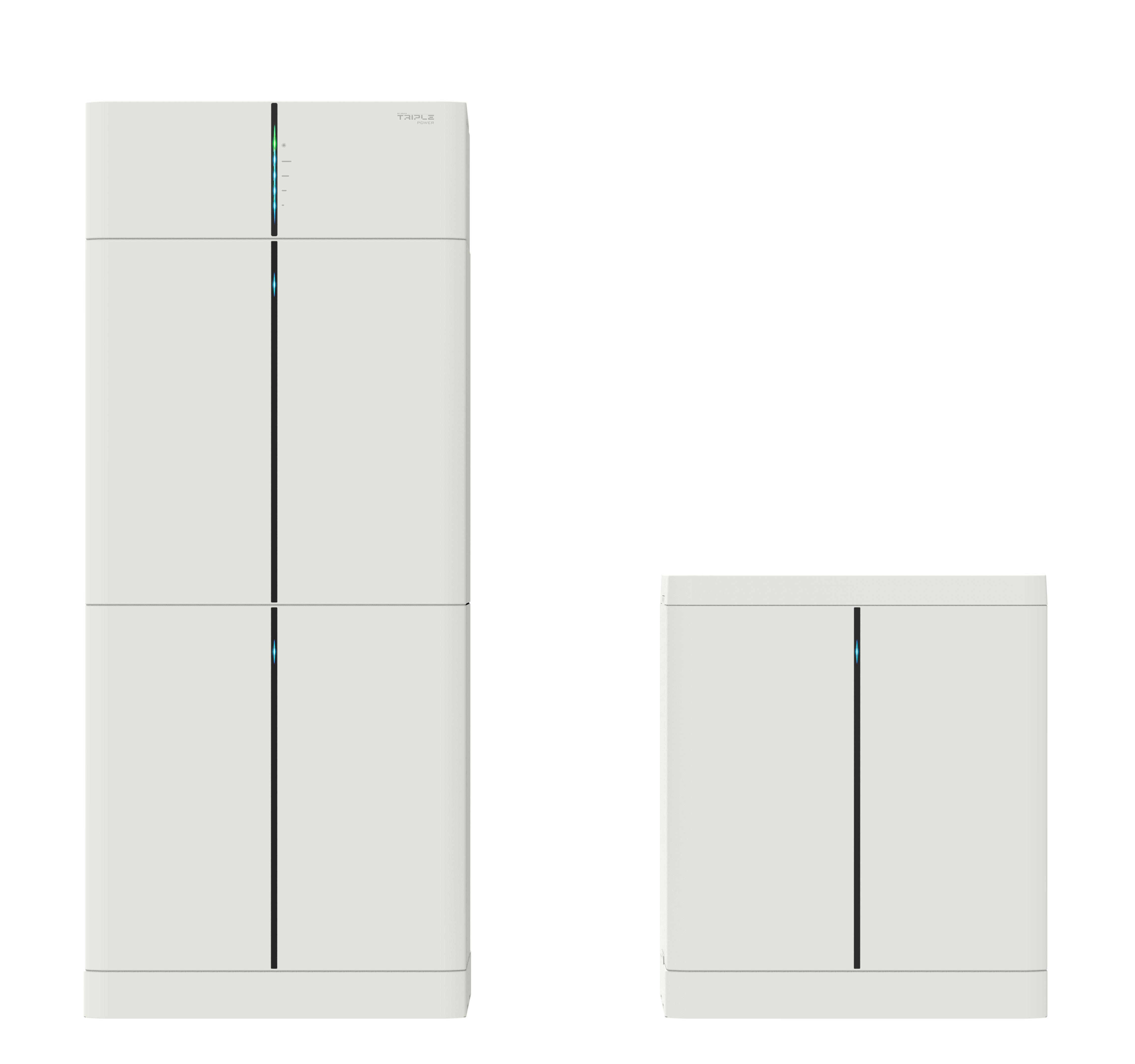

T-BAT H 3.0
T-BAT H 6.0
T-BAT H 9.0
T-BAT H 12.0
Compatible with BMS-Parallel Box-II G2, up to 2 towers of batteries
Stackable modules, supporting floor mounting
Remote fault diagnosis, upgrade and maintenance
Unique battery heating tech for low-temperature operation
Cycle life > 6000 times
High capacity utilization
Efficient energy transfer
LiFePO4 battery cell & high-performance processors
Safety Certifications: CE, UN38.3, etc.
IP65 protection degree
SolaX's battery system effortlessly integrates with their Hybrid inverter, offering unique battery heating technology, a safe LiFePO4 battery type, and high-performance processors. Form an all-in-one system with our X1-Hybrid G4 and the Matebox. With a modular design and easy installation, it supports floor mounting, ensuring reliable operation in various temperatures. The system prevents battery over-discharge, has an IP65 rating for indoor/outdoor use, enables remote fault diagnosis, and includes multiple communication interfaces. With internationally recognized brand devices, a long life cycle, and safety certifications, it provides a trusted solution for users worldwide.
| Parameter | T-BAT H 3.0 / V2 |
| Nominal Voltage | 102.4 V |
| Operating Voltage Range | 90 ~ 116 V |
| Total Energy | 3.1 kWh |
| Usable Energy | 2.8 kWh |
| Rated Capacity | 30 Ah |
| Nominal Power | 2.5 kW |
| Max. Power | 3.1 kW |
| Recommend Charge / Discharge Current | 25 A |
| Max. Charge / Discharge Current | 30 A |
| Battery Roundtrip Efficiency | 95% |
| Cycle Life [90% DOD] | 6000 cycles |
| Expected Life Time / Warranty | 10 years |
| Available Charge / Discharge Temperature Range | -30 ~ 50°C |
| Storage Temperature | -20 ~ 30°C (12 months), 30 ~ 50°C (6 months) |
| Relative Humidity | 4 ~ 100% RH (condensing) |
| Altitude | < 3000 m |
| Ingress Protection | IP65 |
| Battery to Inverter | RS485 / CAN2.0 |
| Battery to Battery / BMS | CAN2.0 |
| Master Control Capacity Indicator | 4 LED (25%, 50%, 75%, 100%) |
| Parameter | T-BAT H 6.0 / V2 |
| Nominal Voltage | 204.8 V |
| Operating Voltage Range | 180 ~ 232 V |
| Total Energy | 6.1 kWh |
| Usable Energy | 5.5 kWh |
| Rated Capacity | 30 Ah |
| Nominal Power | 5.1 kW |
| Max. Power | 6.1 kW |
| Recommend Charge / Discharge Current | 25 A |
| Max. Charge / Discharge Current | 30 A |
| Battery Roundtrip Efficiency | 95% |
| Cycle Life [90% DOD] | 6000 cycles |
| Expected Life Time / Warranty | 10 years |
| Available Charge / Discharge Temperature Range | -30 ~ 50°C |
| Storage Temperature | -20 ~ 30°C (12 months), 30 ~ 50°C (6 months) |
| Relative Humidity | 4 ~ 100% RH (condensing) |
| Altitude | < 3000 m |
| Ingress Protection | IP65 |
| Battery to Inverter | RS485 / CAN2.0 |
| Battery to Battery / BMS | CAN2.0 |
| Master Control Capacity Indicator | 4 LED (25%, 50%, 75%, 100%) |
| Parameter | T-BAT H 9.0 / V2 |
| Nominal Voltage | 307.2 V |
| Operating Voltage Range | 270 ~ 348 V |
| Total Energy | 9.2 kWh |
| Usable Energy | 8.3 kWh |
| Rated Capacity | 30 Ah |
| Nominal Power | 7.6 kW |
| Max. Power | 9.2 kW |
| Recommend Charge / Discharge Current | 25 A |
| Max. Charge / Discharge Current | 30 A |
| Battery Roundtrip Efficiency | 95% |
| Cycle Life [90% DOD] | 6000 cycles |
| Expected Life Time / Warranty | 10 years |
| Available Charge / Discharge Temperature Range | -30 ~ 50°C |
| Storage Temperature | -20 ~ 30°C (12 months), 30 ~ 50°C (6 months) |
| Relative Humidity | 4 ~ 100% RH (condensing) |
| Altitude | < 3000 m |
| Ingress Protection | IP65 |
| Battery to Inverter | RS485 / CAN2.0 |
| Battery to Battery / BMS | CAN2.0 |
| Master Control Capacity Indicator | 4 LED (25%, 50%, 75%, 100%) |
| Parameter | T-BAT H 12.0 / V2 |
| Nominal Voltage | 409.6 V |
| Operating Voltage Range | 360 ~ 464 V |
| Total Energy | 12.3 kWh |
| Usable Energy | 11.0 kWh |
| Rated Capacity | 30 Ah |
| Nominal Power | 10.2 kW |
| Max. Power | 12.3 kW |
| Recommend Charge / Discharge Current | 25 A |
| Max. Charge / Discharge Current | 30 A |
| Battery Roundtrip Efficiency | 95% |
| Cycle Life [90% DOD] | 6000 cycles |
| Expected Life Time / Warranty | 10 years |
| Available Charge / Discharge Temperature Range | -30 ~ 50°C |
| Storage Temperature | -20 ~ 30°C (12 months), 30 ~ 50°C (6 months) |
| Relative Humidity | 4 ~ 100% RH (condensing) |
| Altitude | < 3000 m |
| Ingress Protection | IP65 |
| Battery to Inverter | RS485 / CAN2.0 |
| Battery to Battery / BMS | CAN2.0 |
| Master Control Capacity Indicator | 4 LED (25%, 50%, 75%, 100%) |
